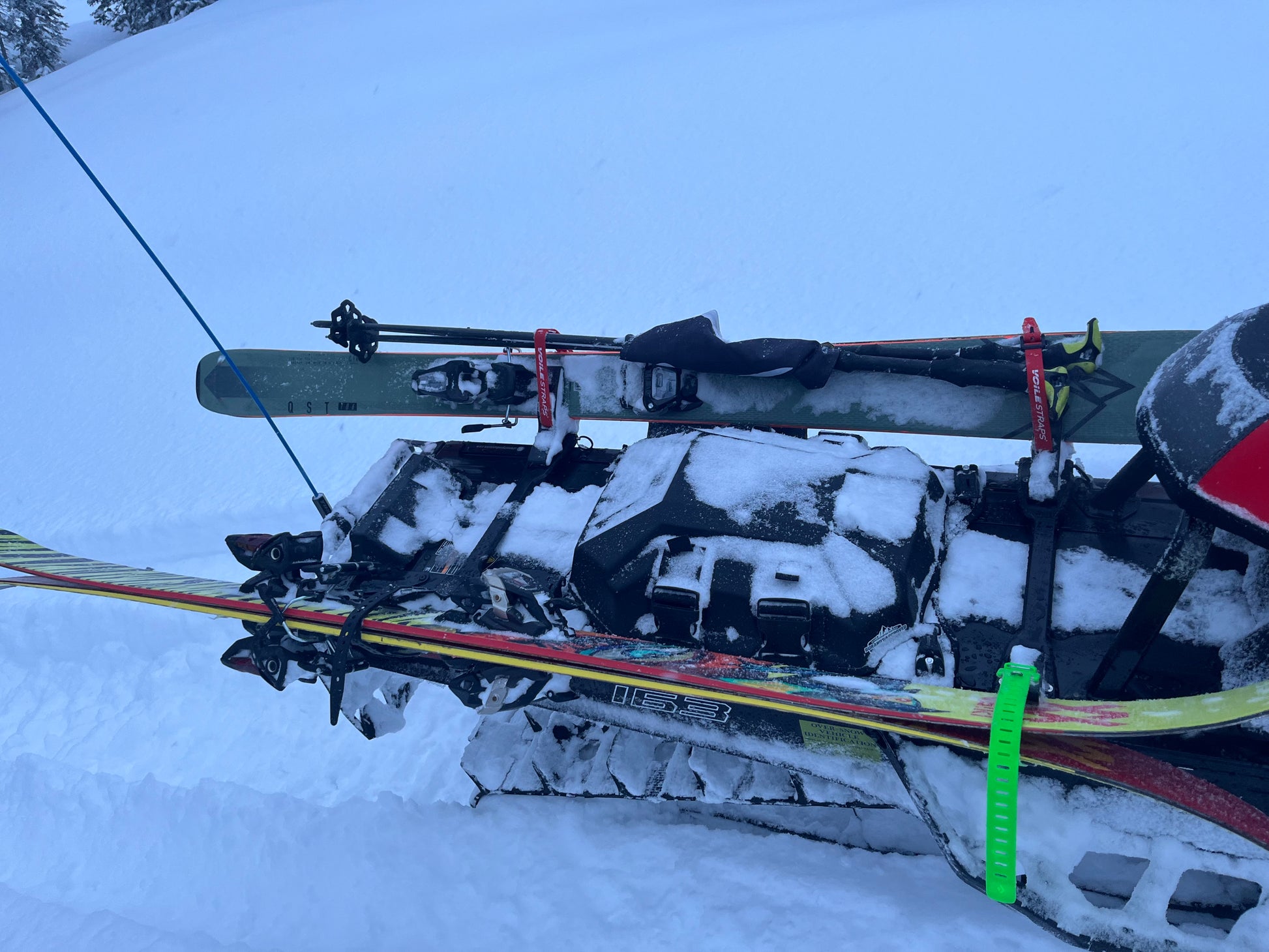

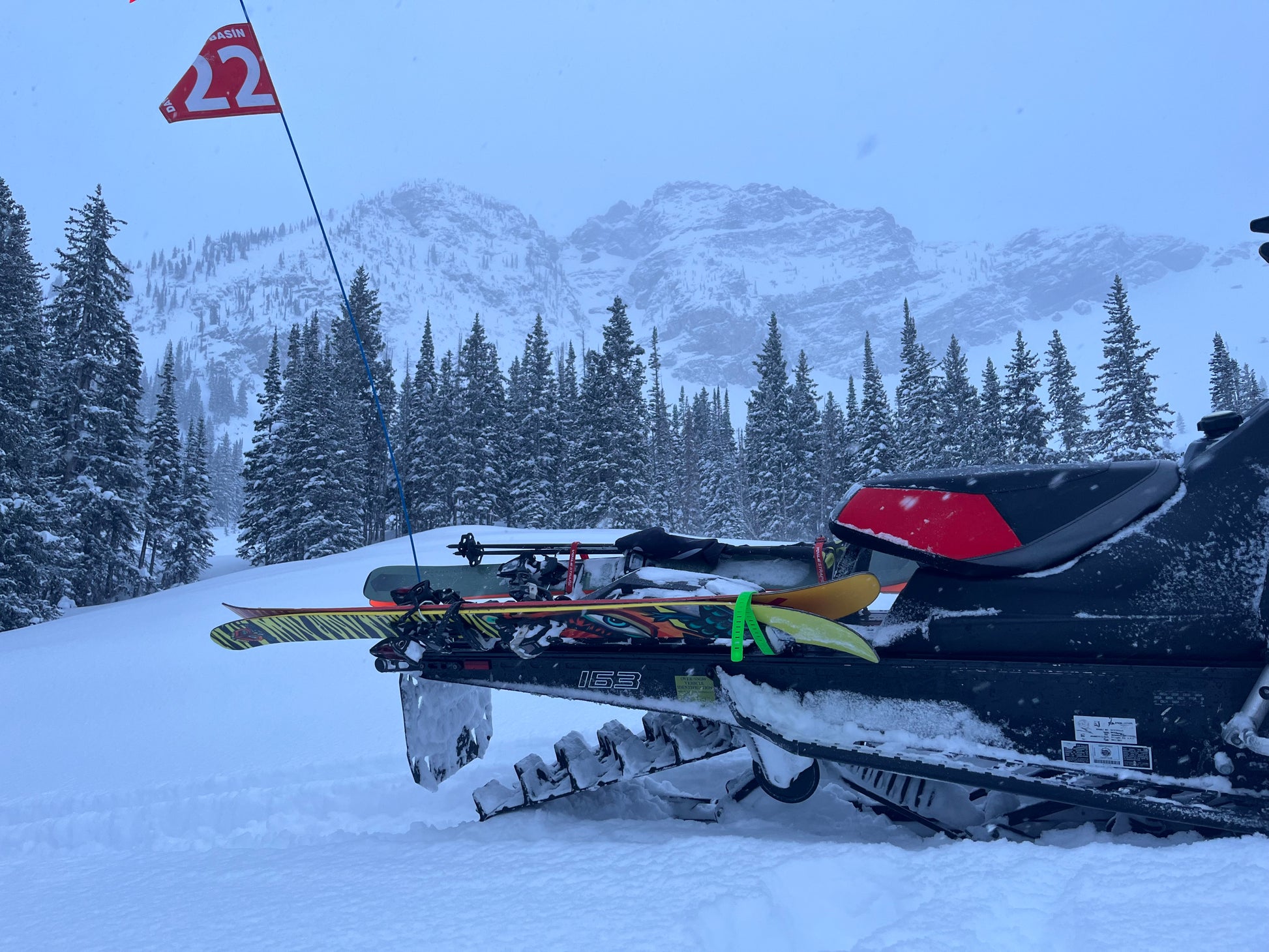

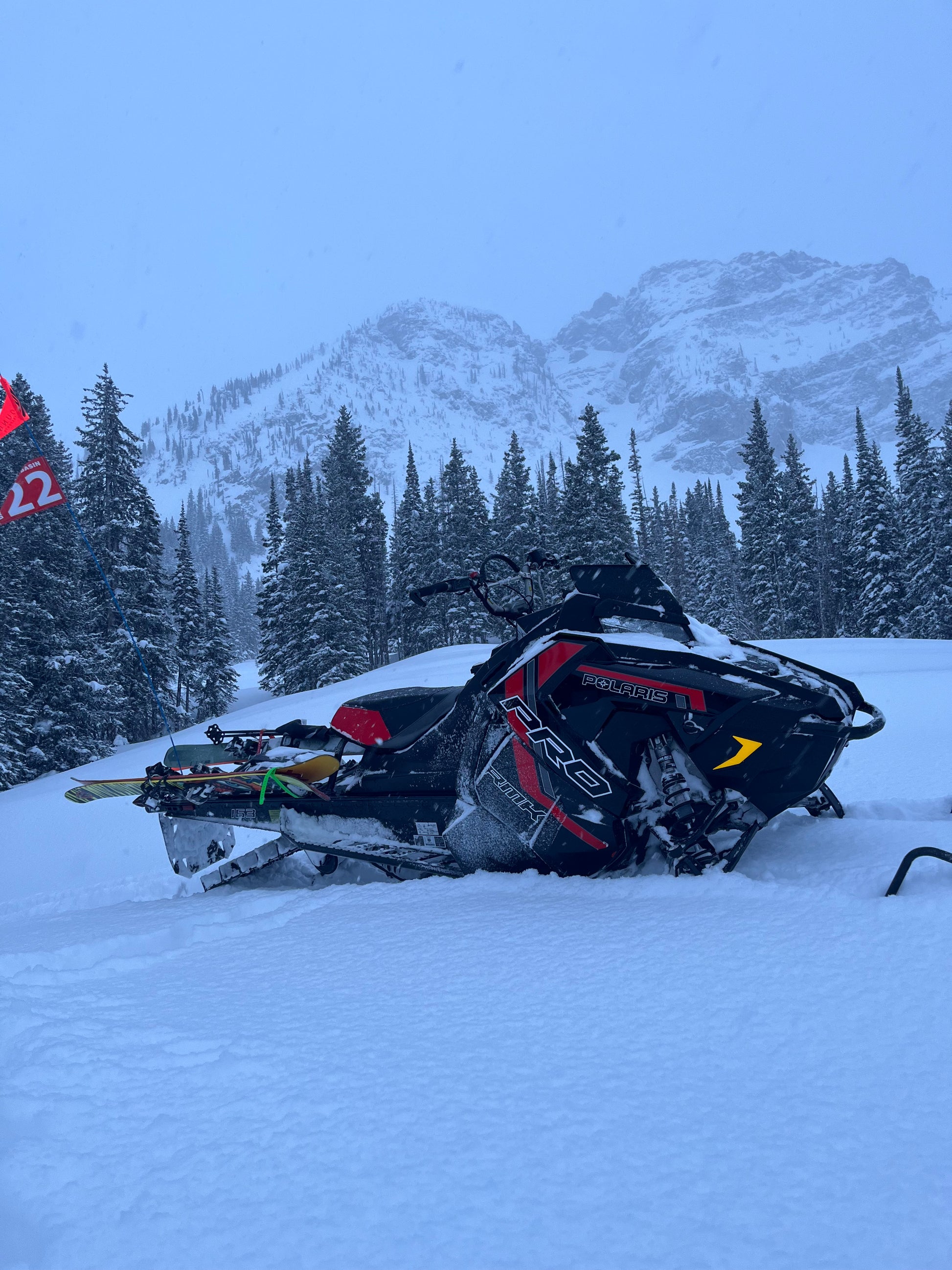

Get fresh turns all day long, carry your backcountry skis, down hill skis, snowboards or split-boards into the high county on your sled. Carriers are quick release for those days that you just want to Brap. Skis or boards are held into the rack system using a standard Voile strap, which most Backcountry skiers are already carrying, why not put them to use.

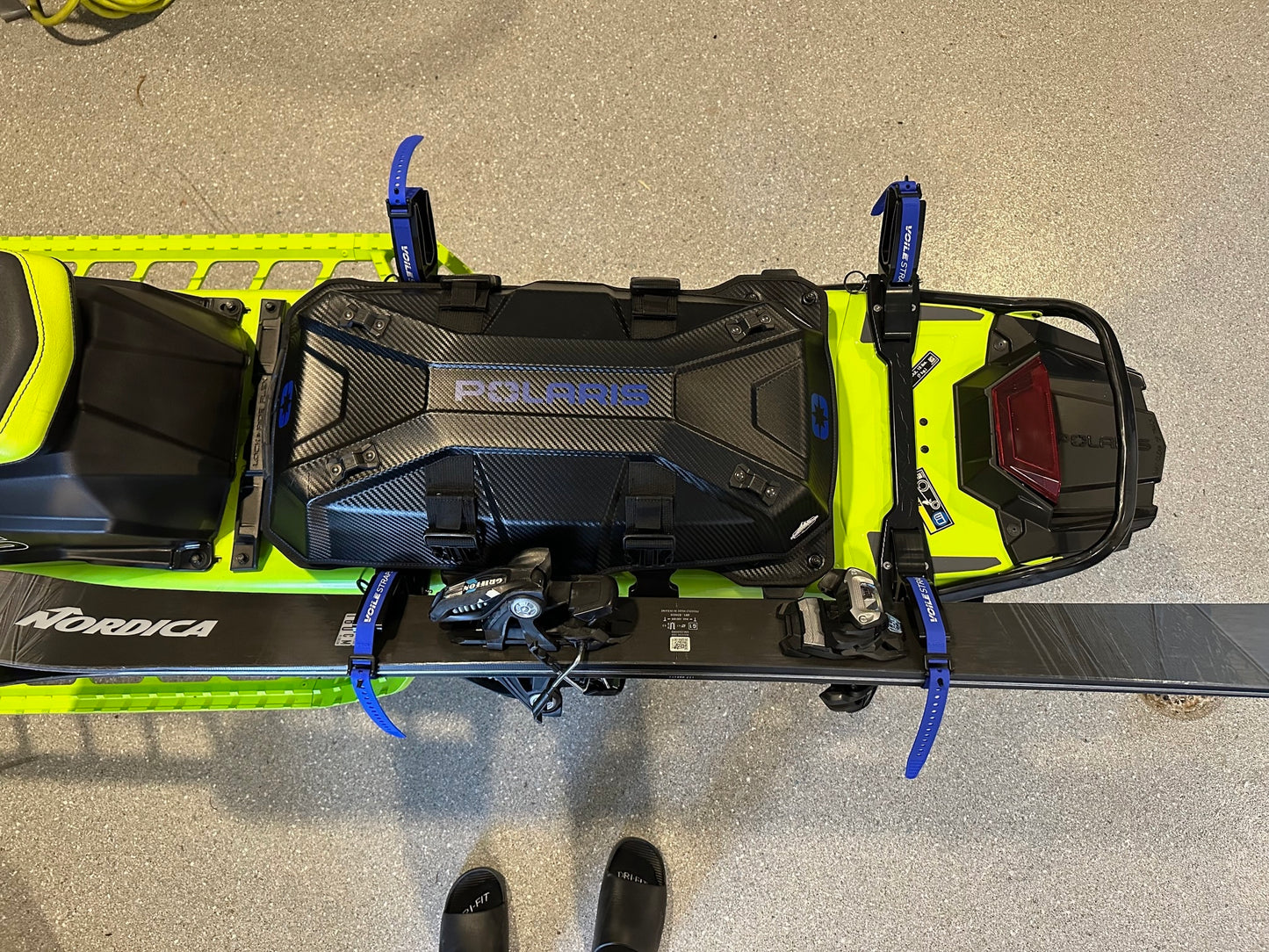

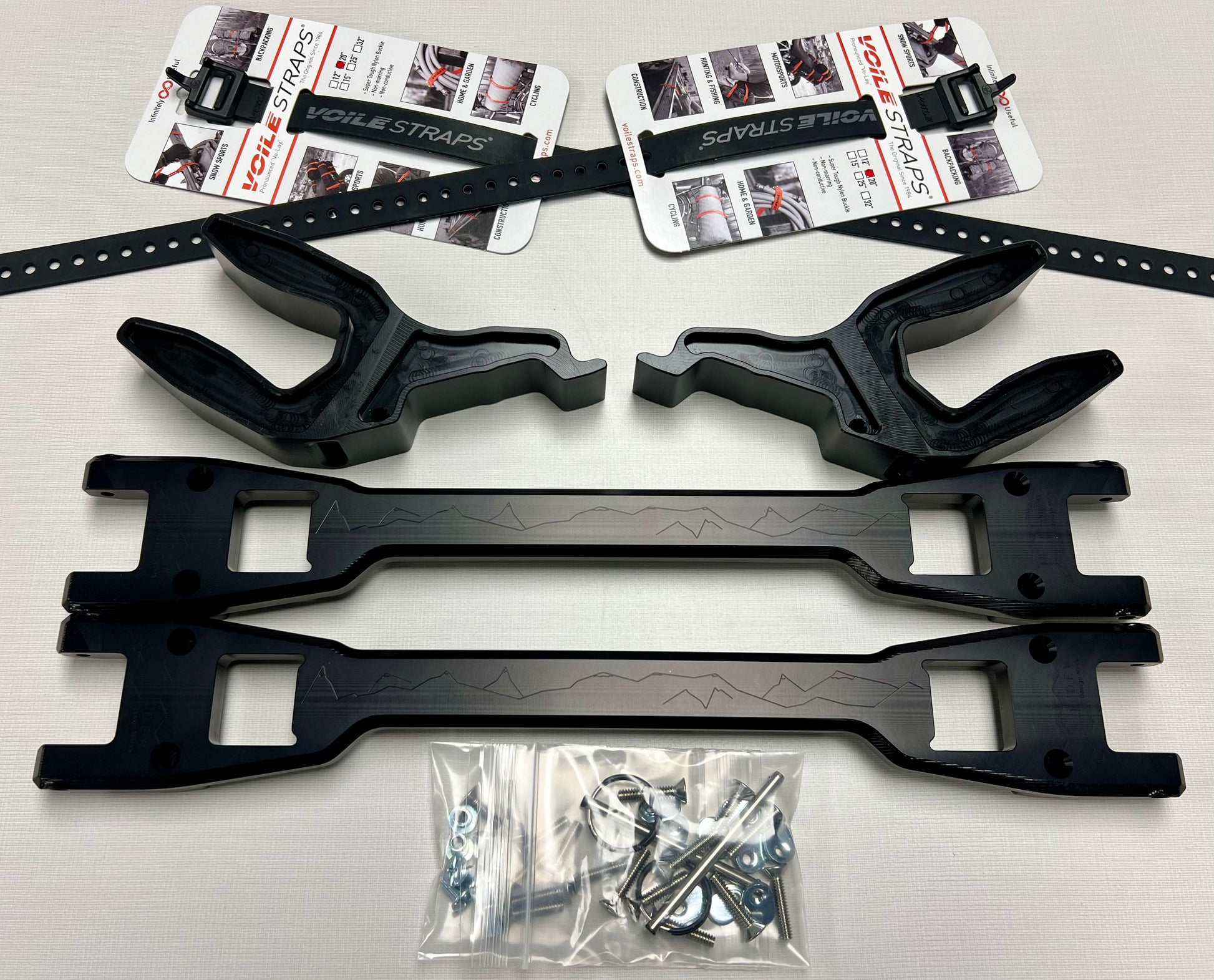

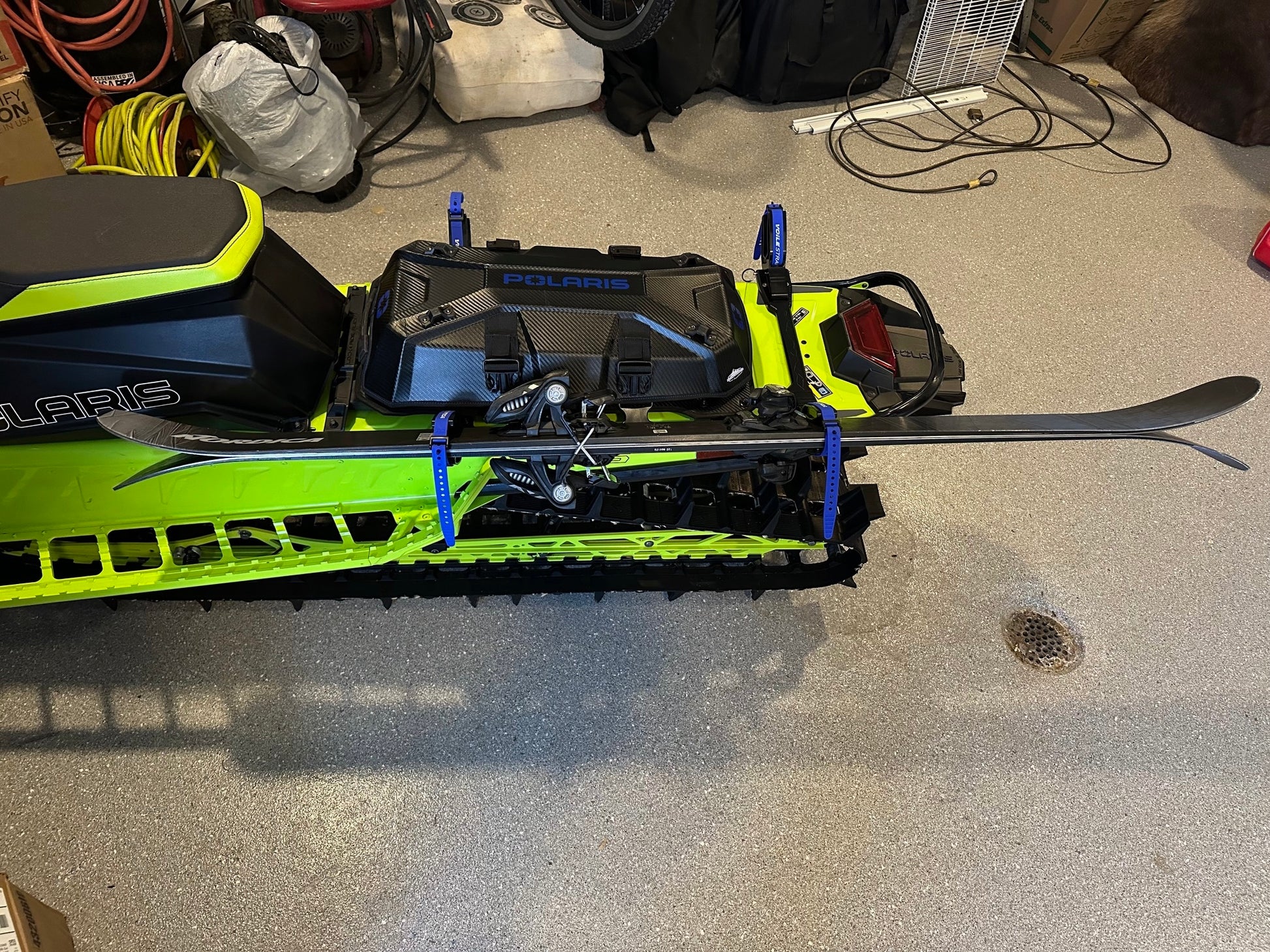

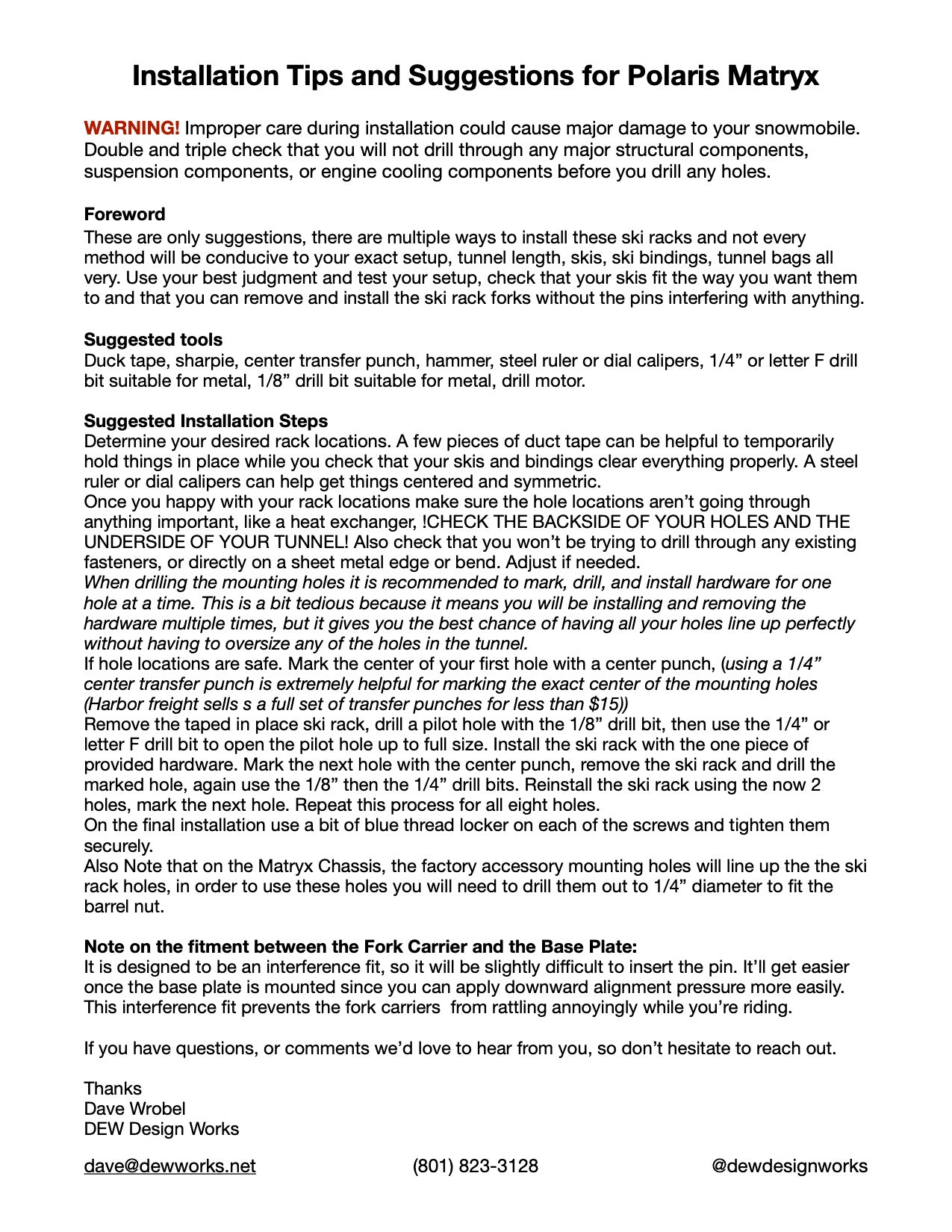

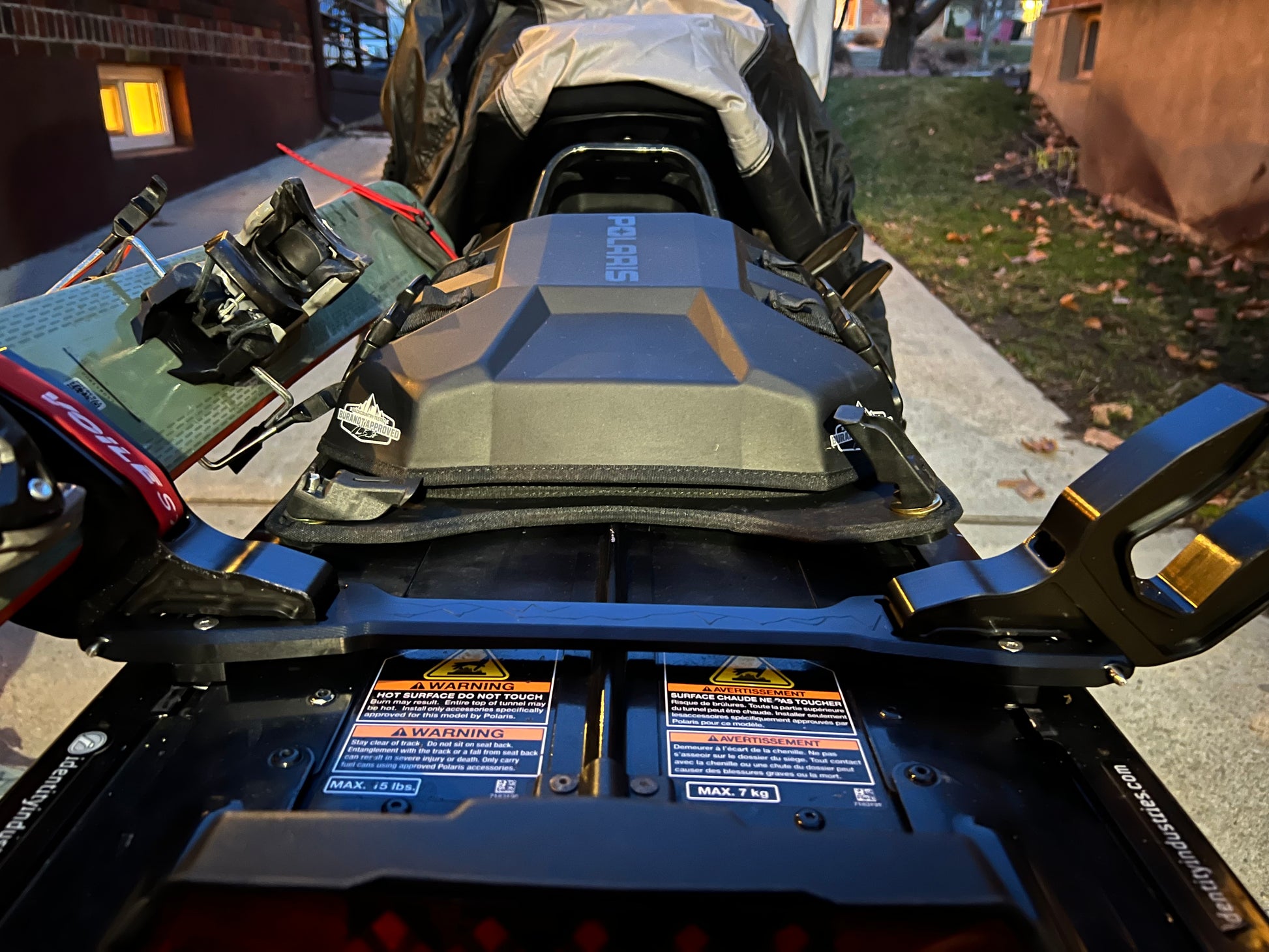

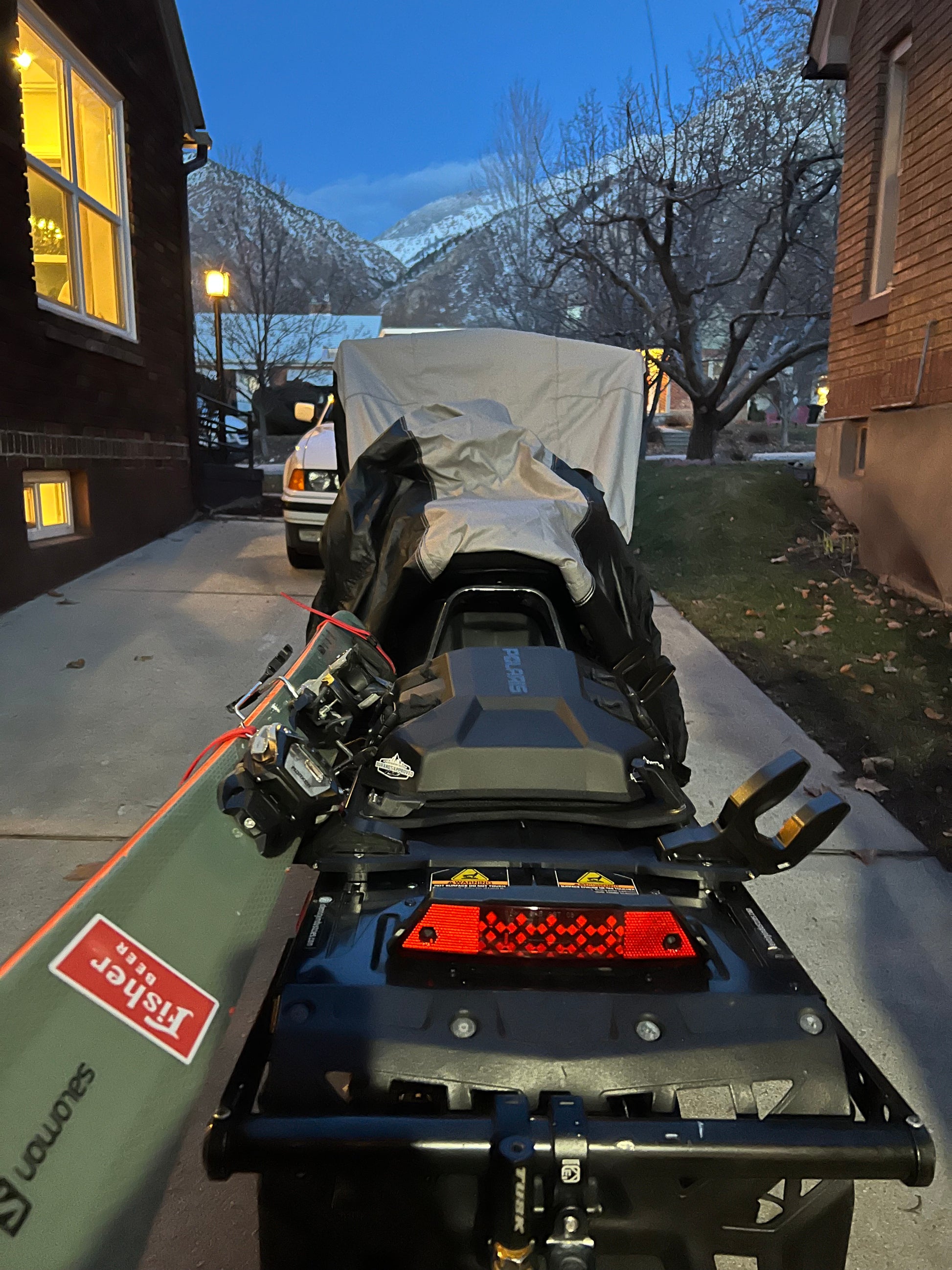

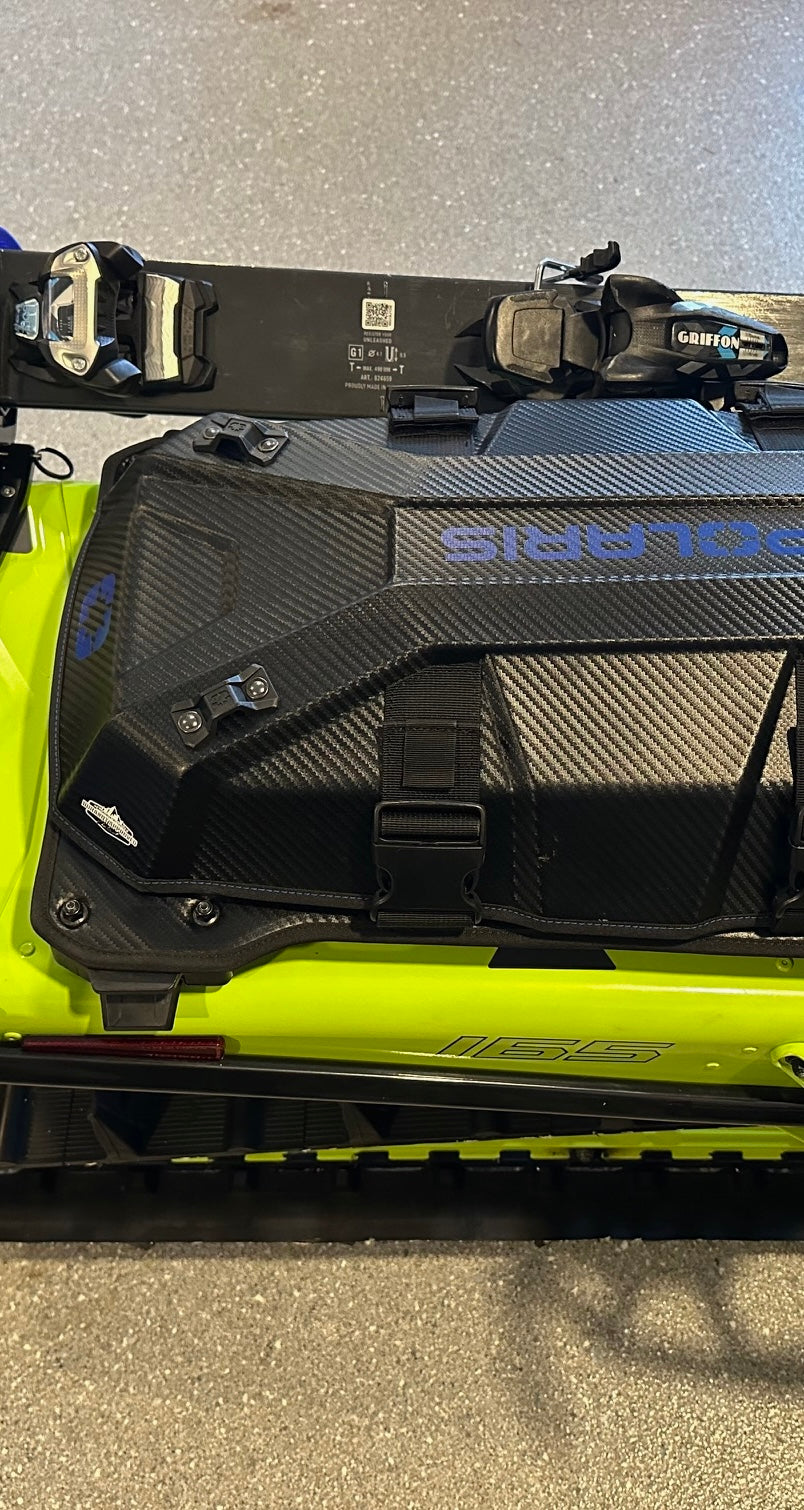

This is the Base System rack for Polaris Matryx chassis snowmobiles. It utilizes the factory accessory mounting holes on the tunnel (opening the holes to 1/4" diameter is required). The set includes two mounting bases, two forks, two retaining pins, two Voile straps of your color choice, and the mounting hardware. This is enough to carry one set of skis, or one snowboard.
If you want to carry two sets of skis or two snowboards add an extra Fork Set to your order. Also note that you can order a ski rack system here and then add a snowboard fork set to your order to be able to carry a set of skis on one side of your sled and a snowboard on the other side (or vise versa).

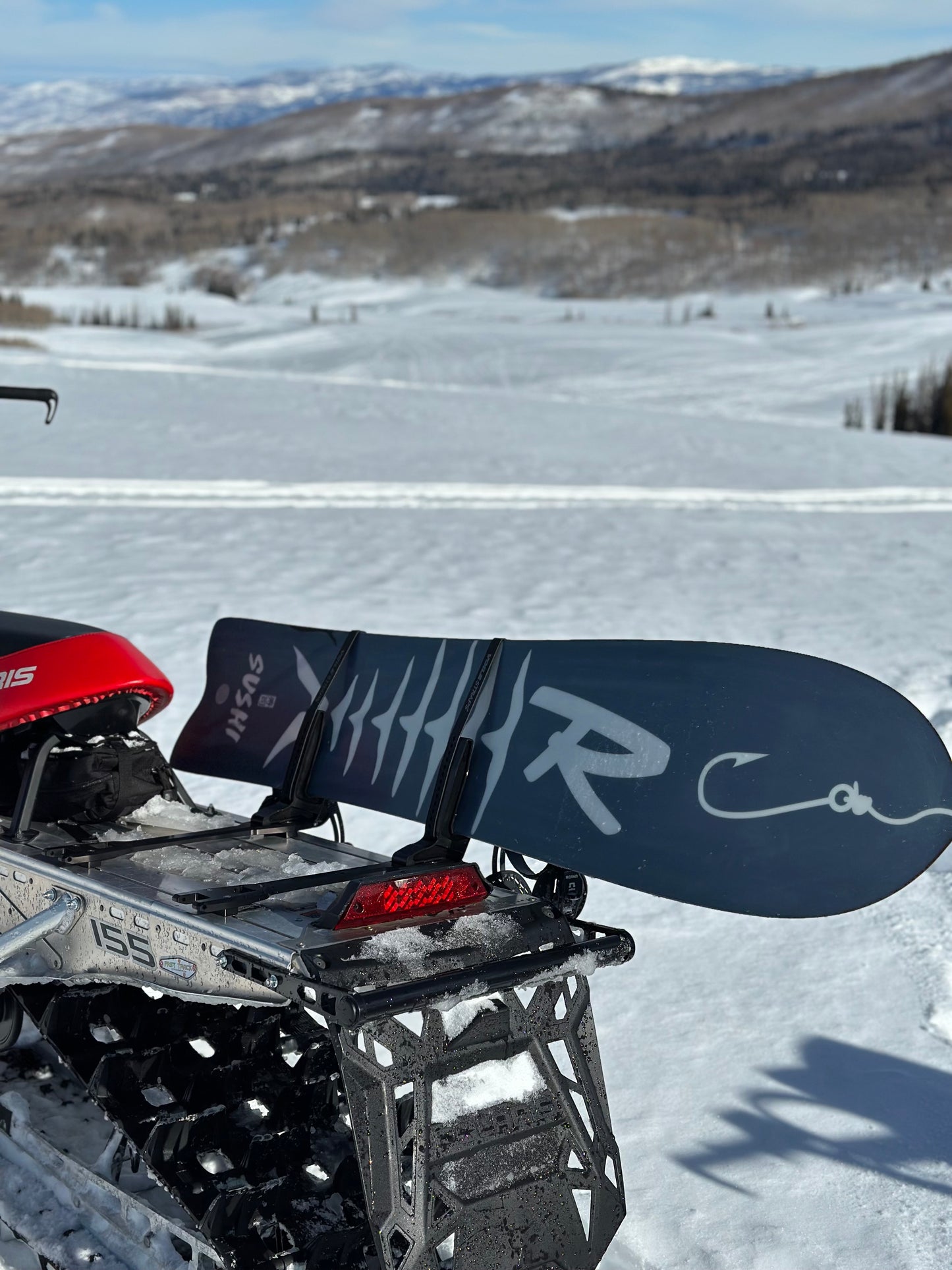

The Ski Forks are situated at a 45 degree angle form vertical, the Snowboard Forks are situated at a 25 degree angle from vertical, this orientation positions the skis or boards towards the outside of the tunnel allowing for the use of your tunnel bag without interference. The Fork carrier is made of high quality, engineered Delrin plastic. Plastic material is used here because its gentler on your ski edges. Ski Fork carriers will accommodate ski’s and skins up to a maximum combined thickness of 1.25in. Snowboard Fork carriers will accommodate boards up to a maximum thickness of 0.650in.

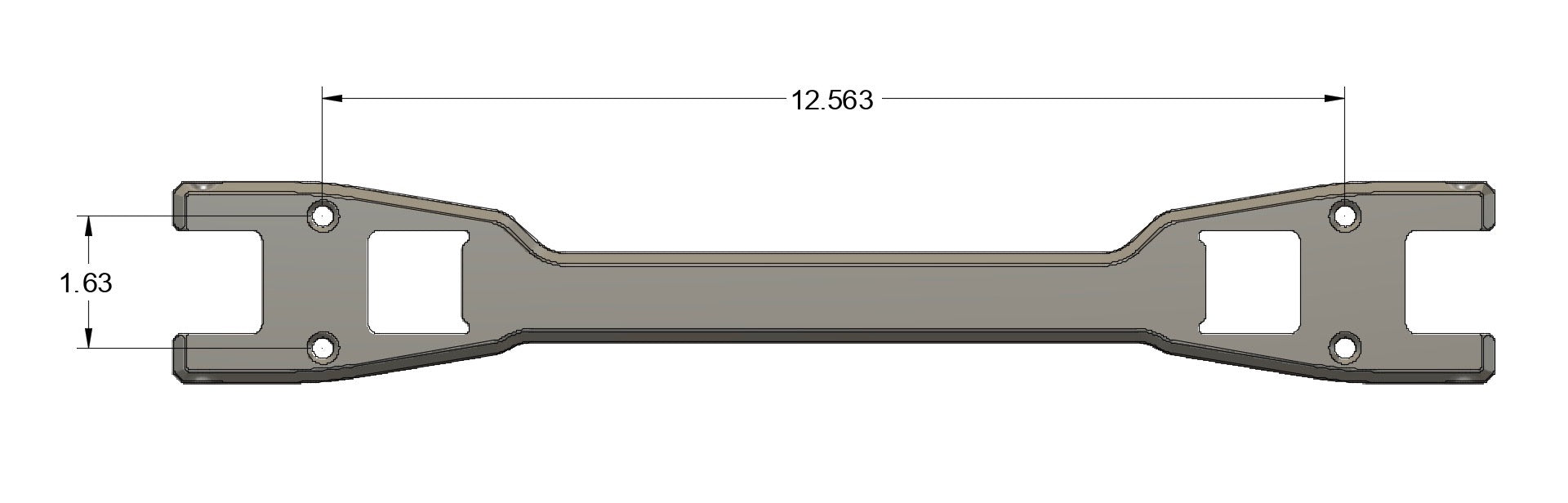

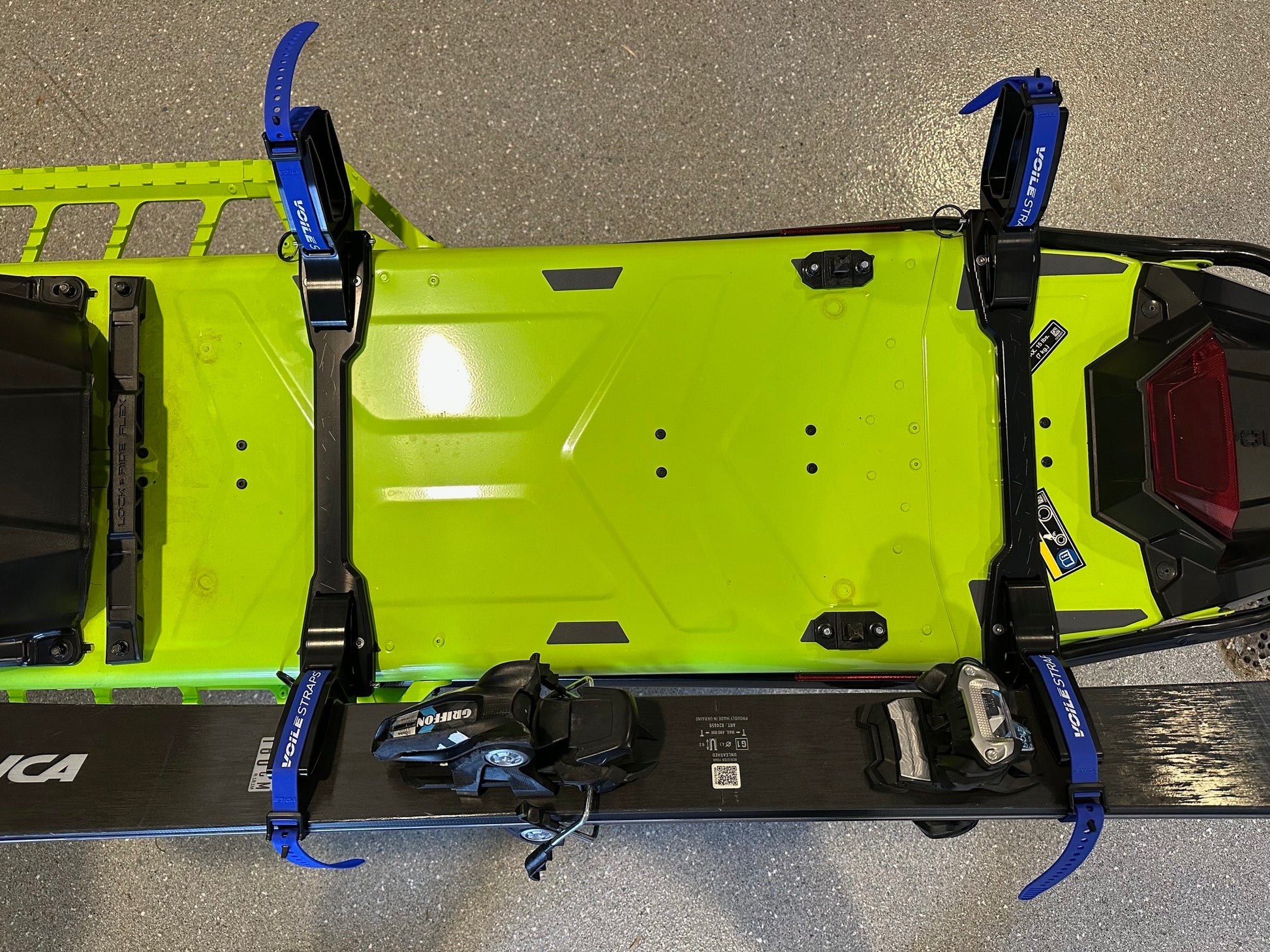

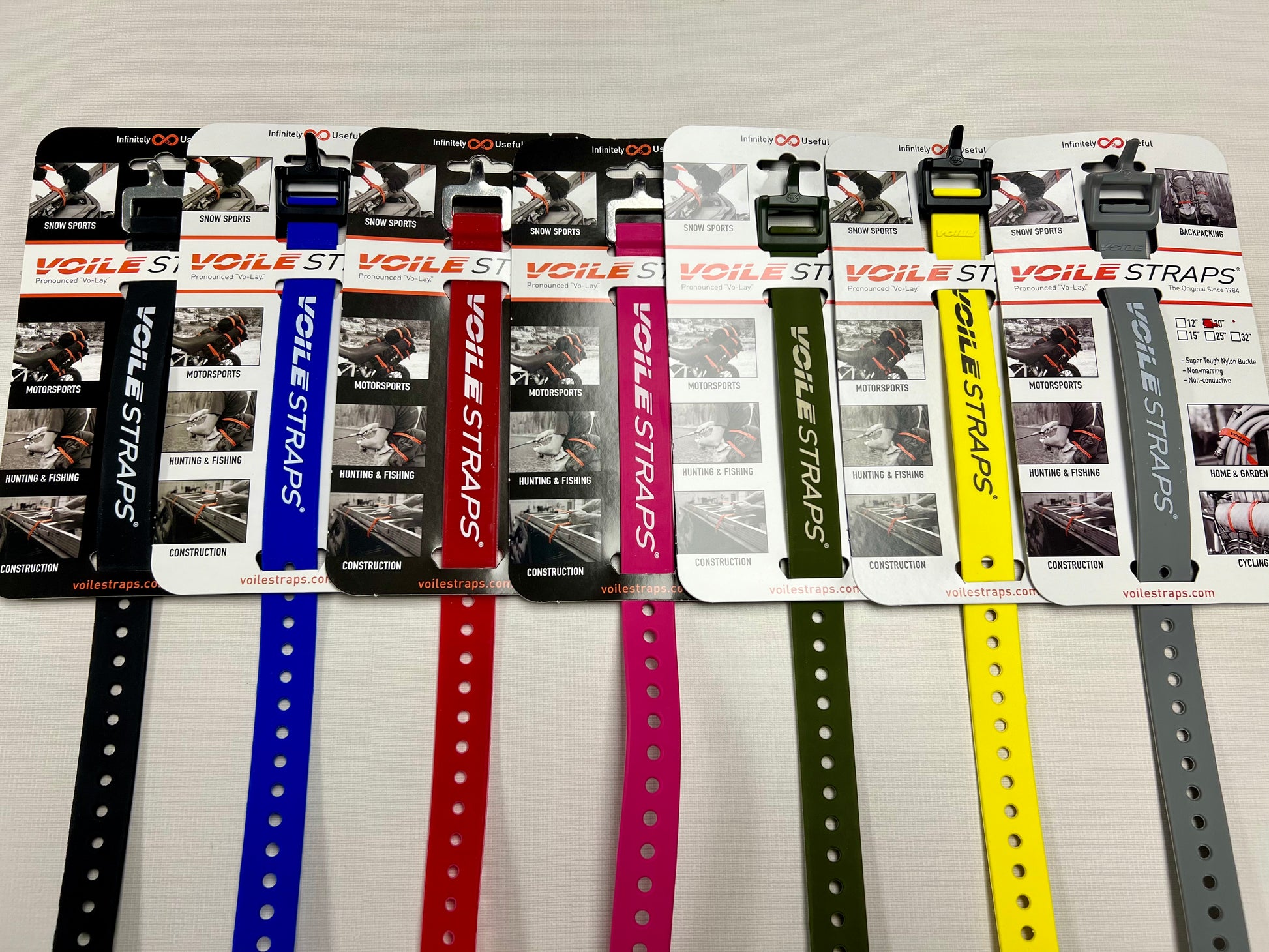

Base plates are 6061-T6 anodized aluminum and attach to your snowmobile tunnel via four stainless steel screws and barrel nuts. Your skis are held into the fork carriers using a standard 20” Voile strap, snowboards use a 32" voile strap. A single Stainless Steel Ball Detent pin holds the Fork to the Base.
